Milk Receiver Set, 55L

Available

Category

Receiver Sets

Code

614912

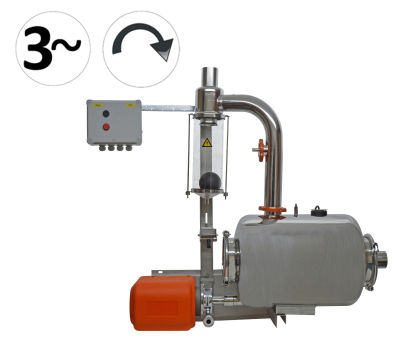

55 litre Milk Receiver Set  - 3 phase


Features:

  • Stainless Steel construction
  • Connected to milk line by stainless steel tube
  • Stainless Steel 8 Bladed impellor for reduced noise level and gentler milk handling
  • Clamp on Interchangeable milk line inlet lids.
  • Can be assembled left or right handed.
  • Transparent sanitary Trap with Automatic washing facility.
  • Option of automatic Drain (opens when vacuum off)
  • Option of pneumatic milk sweep to clear delivery lines at end of milking
  • 30, 55 and 100 litre capacity availible
  • 1Phase or 3Phase Milk Pumps available
  • 100 Litre vessel available with two pump outlets
  • Choice of 40, 51, 63, 76mm and 90mm diameter inlets (see receiver lid diagrams)
  • Automatic Liquid Level Control of Milk Pump
  • Centrifugal Milk Pump with Left or Right Hand outlet
  • Non Return Valve fitted to Milk Pump Outlet
  • Option of automatic Drain (opens when vacuum off)
  • Option of pneumatic milk sweep to clear delivery lines at end of milking

During day to day running of the equipment it is good practice to establish a routine, where daily checks occur before each milking and periodic weekly maintenance occurs at the same time on the same day each week.


PERIODIC CHECKS
Daily

  • After each washing ensure that the receiver assembly is properly drained.

Regularly

  • The condition of the rubberware should be checked
  • Listen for abnormal air leakages, particularly at joins in the milk line.

Every three months

  • Check that the milk receiver and sanitary trap are being properly cleaned.
  • Check for air leakage at the receiver lids.

Annually

  • Replace all rubber gaskets, seals and tubes on the milk pump, receiver and sanitary trap.
  • Check non-return valve is in good working order.

When hosing down, care should be taken not to direct water at the external parts of the electrical components in the assembly (particularly the milk pump and control box).
If a fault occurs with the receiver assembly, check the mains fuses, the fuse in the control box and the non-return flap valve.

Code Product Price Min.
Quantity
Status Quantity
614099 614099 Milk Pump Controller 24v, 1phs, 220/240v, 0.37Kw Login to see prices 1 Available
614098 614098 Milk Pump Controller 24v, 3phs, 380v, 0.75Kw Login to see prices 1 Available
614172 614172 Milk Pump Controller 24v, 3phs, 380v, 0.37Kw Login to see prices 1 Available
614005 614005 Milk Pump Controller 24v, 1phs, 220/240v, 0.75Kw Login to see prices 1 Available
614097 614097 Milk Pump Controller 24v, 3phs, 220v, 0.75Kw Login to see prices 1 Available
607857 607857 Milk Pump Starter Direct Online 5.5Kw Login to see prices 1 Available
613497 613497 Milk Pump 0.75kW, 3phs, 220/380v, LH Login to see prices 0 Available
613496 613496 Milk Pump 0.75kW, 1phs, 230v, 50Hz, LH Login to see prices 1 Available
613501 613501 Milk Pump 0.75kW, 1phs, 230v, 50Hz, RH Login to see prices 1 Available
613502 613502 Milk Pump 0.75kW, 3phs, 22/380v, 50Hz, RH Login to see prices 1 Available
614122 614122 Milk Sanitary Trap 50.8mm Login to see prices 0 Available
614123 614123 Milk Sanitary Trap 76.2mm Login to see prices 1 Available
614348 614348 Floating Rubber Ball 100mm Ø, Black Login to see prices 0 Available
614003 614003 Sanitory Support Trap Support S/S Login to see prices 0 Available
613999 613999 Sanitary Trap Tie Rod Login to see prices 0 Available
613997 613997 Restrictor 16mm oØ x 3mm iØ x 8mm long, Stainless Steel Login to see prices 0 Available
301434 301434 Clamp & seal pack 40mm, Orange Login to see prices 0 Available
301433 301433 Clamp & seal pack 50.8mm Orange Login to see prices 0 Available
314518 314518 Clamp & seal pack 51mm Grey Login to see prices 0 Available
313289 313289 Clamp and seal pack 76.2 mm Ø Grey Login to see prices 0 Available
614761 614761 Clamp & Seal 50.8mm Ø S/S Login to see prices 0 Available
614094 614094 Receiver 55l 76mm 1 pump (Clamp on Lids) Login to see prices 0 Available
613119 613119 Milk Receiver Lid Gasket, Nitrile Login to see prices 0 Available
300137 300137 Milk Pump Outlet Bend 1.4" Login to see prices 0 Available
614954 614954 Milk Pump Cover, Blue Login to see prices 0 Available
614953 614953 Milk Pump Cover, Grey Login to see prices 0 Available
613047 613047 Milk Pump Cover, Orange Login to see prices 0 Available
607943 607943 Barbed Tee, Equal 12mm iØ x 16mm oØ Login to see prices 0 Available
Available
Milk Pump Controller 24v, 1phs, 220/240v, 0.37Kw 614099 Login to see prices
Min.Quantity
1
Available
Milk Pump Controller 24v, 3phs, 380v, 0.75Kw 614098 Login to see prices
Min.Quantity
1
Available
Milk Pump Controller 24v, 3phs, 380v, 0.37Kw 614172 Login to see prices
Min.Quantity
1
Available
Milk Pump Controller 24v, 1phs, 220/240v, 0.75Kw 614005 Login to see prices
Min.Quantity
1
Available
Milk Pump Controller 24v, 3phs, 220v, 0.75Kw 614097 Login to see prices
Min.Quantity
1
Available
Milk Pump Starter Direct Online 5.5Kw 607857 Login to see prices
Min.Quantity
1
Available
Milk Pump 0.75kW, 3phs, 220/380v, LH 613497 Login to see prices
Available
Milk Pump 0.75kW, 1phs, 230v, 50Hz, LH 613496 Login to see prices
Min.Quantity
1
Available
Milk Pump 0.75kW, 1phs, 230v, 50Hz, RH 613501 Login to see prices
Min.Quantity
1
Available
Milk Pump 0.75kW, 3phs, 22/380v, 50Hz, RH 613502 Login to see prices
Min.Quantity
1
Available
Milk Sanitary Trap 50.8mm 614122 Login to see prices
Available
Milk Sanitary Trap 76.2mm 614123 Login to see prices
Min.Quantity
1
Available
Floating Rubber Ball 100mm Ø, Black 614348 Login to see prices
Available
Sanitory Support Trap Support S/S 614003 Login to see prices
Available
Sanitary Trap Tie Rod 613999 Login to see prices
Available
Clamp & seal pack 40mm, Orange 301434 Login to see prices
Available
Clamp & seal pack 50.8mm Orange 301433 Login to see prices
Available
Clamp & seal pack 51mm Grey 314518 Login to see prices
Available
Clamp and seal pack 76.2 mm Ø Grey 313289 Login to see prices
Available
Clamp & Seal 50.8mm Ø S/S 614761 Login to see prices
Available
Available
Milk Receiver Lid Gasket, Nitrile 613119 Login to see prices
Available
Milk Pump Outlet Bend 1.4" 300137 Login to see prices
Available
Milk Pump Cover, Blue 614954 Login to see prices
Available
Milk Pump Cover, Grey 614953 Login to see prices
Available
Milk Pump Cover, Orange 613047 Login to see prices
Available
Barbed Tee, Equal 12mm iØ x 16mm oØ 607943 Login to see prices
