Milk Sanitary Trap 50.8mm

Available

Category

Sanitary Traps

Code

614122

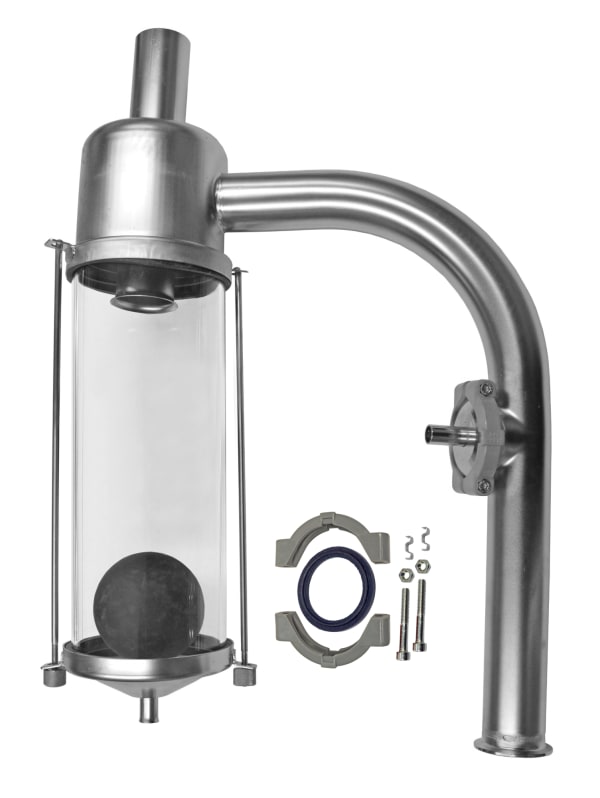

Milk Sanitary Trap 50.8mm (2 inch)


Benefits & Features

  • Transparent Trap with Automatic washing facility
  • Stainless steel construction
  • Separates the milking part of the system from vacuum side of the system.
  • Protects the vacuum pump from moisture and dirt that might otherwise be sucked up through the vacuum lines
  • Supplies the receiver jar with vacuum and then transfers it to the milking units

FREEING THE BALL VALVE IN THE SANITARY TRAP
If the ball in the sanitary trap rises and becomes stuck at the top, it is necessary to release it. Close the sliding Valterra valve above the sanitary trap and open the stall tap (if fitted). This will allow air to leak into the system and the ball will eventually fall back down.
Do not attempt to free the ball by hitting the glass body of the sanitary trap.

Code Product Price Min.
Quantity
Status Quantity

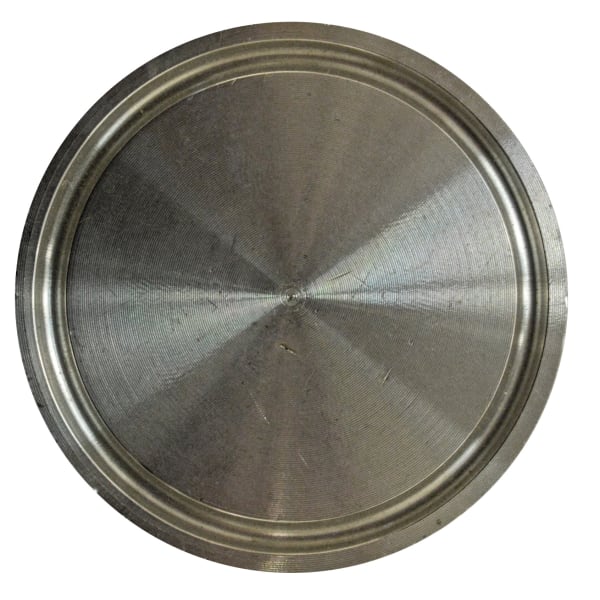

303014 303014 Sanitory Trap Lid Ø76.2 Login to see prices 0 Available
607753 607753 Sanitary Trap Seal Login to see prices 0 Available
613999 613999 Sanitary Trap Tie Rod Login to see prices 0 Available
612473 612473 Glass Body Login to see prices 0 Available
614348 614348 Floating Rubber Ball 100mm Ø, Black Login to see prices 0 Available
613998 613998 Nut M6 Knurled S/S Login to see prices 0 Available
404371 404371 Base Outlet Login to see prices 0 Available
Available
Sanitory Trap Lid Ø76.2 303014 Login to see prices
Available
Sanitary Trap Seal 607753 Login to see prices
Available
Sanitary Trap Tie Rod 613999 Login to see prices
Available
Glass Body 612473 Login to see prices
Available
Floating Rubber Ball 100mm Ø, Black 614348 Login to see prices
Available
Nut M6 Knurled S/S 613998 Login to see prices
Available
Base Outlet 404371 Login to see prices
