Quick Connect (Superseal) Female
Available

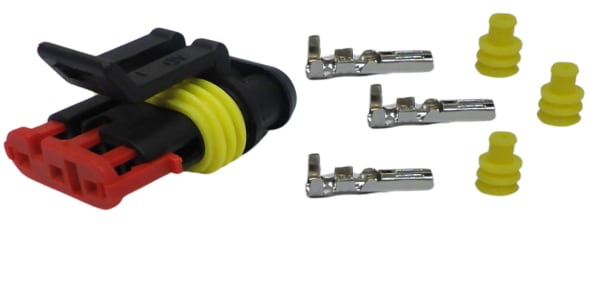

Quick Connect (Superseal) Connector
Female Socket, 3 way IP67
Kit contains Female connectors only with sufficient terminals & seals
Heatshrink tubing and crimping tool available seporately
QUICK CONNECTORS (Superseal)
These connectors are completely interchangeable and can be connected with existing components & with the devices currently used in the agricultural and automotive industry (pulsators, sensors, oil pressure senders, water temperature monitoring, etc)
- Water Resistant Electrical Connector Plug Suitable for Easy Disconnection without the need for Unwiring
- Easy to Use
- High Quality Materials Covered by an Insulating Layer
- Exterior of the Connector Plug is Wrapped with High-quality Nylon Material, which is Water Resistant and Dustproof.
- Resistant to High Temperature, Corrosion, and Aging
- Operating temperature range;
- Static applications -40º - 120º
- Continuous Dynamic -5º - 120º
- Short Term Dynamic -5º - 150º
- Strong Electrical Conductivity.
- High Pull off Strength (nominally 120N)
- IP40 rating
- Suitable for cable sizes 0.5mm² to 1.5mm²
