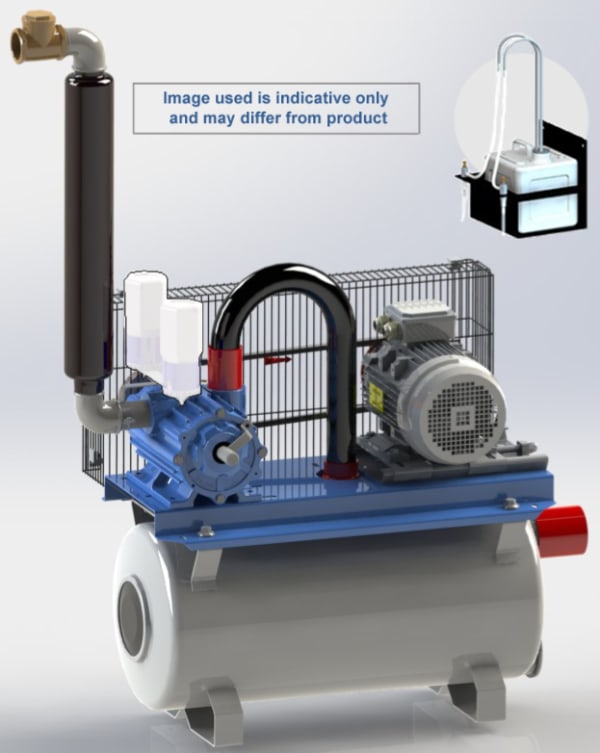

Vacuum Pump Set 1600, 5.5 Hp, 1700 L/min
Available
110 Lt Tank, Drip Feed Oiler, Vacuum Pump Set
5.5 Horse power, 1700 litres per minute
3 phase - 3φ
Standard Features
- Drip Feed Oiler System
- Silencer
- Galvanized Elbow
- Brass Non-return valve (2”)
- ADP Sleeve (2” x 2”/ 50.8mm x 50.8mm)
- Drip Feed Oiler (with nipples Oil 14 x 27 thread 6.35mm Inlet ø8)
- Pulley Pump 150 2A ø24 key8 + Fitting fan
- Exit tank:Lt 110 4” – 110mm
- Optional Oil/Air Separator 1000/1500/1600
- Wide stock of Spares and Consumables availible (contact us for more details)
With higher capacities and greater durability, these vacuum pumps can satisfy the needs of all milking systems. The practical and compact design of our vacuum pumps, allow easy installation and minimum servicing.
In orders excluding motors please specify which type of motor you will install for supply of correct motor pulley
Please check oil level weekly as if the pump runs without oil it will run the risk of being damaged.
Made with the highest quality materials including superior quality belts, bearings and oil seals. The capacity of the pumps is between 250 and 3300 nl / min
- Belt Driven Oil Lubricated Pumps
- High power and performance
- Reliable
- Low noise level
- 1 Phase or 3 Phase motors available (dependant on pump capacity)
- Mounted on Horizontal Base for low height Installations
- Optional Mounted on Vertical Base for smaller floor space installations
- Fully protected belt drive guards
- Adjustable oil drip lubrication system
- Oil separator fitted to exhaust with silencer options
- Wall mounted self-draining Interceptors available
- Variable speed controller available for control of output by vacuum demand
- Vacuum regulators available for vacuum capacities up to 3500 Lt/min and 7000 Lt/min
- 100mm Diameter vacuum gauge available for ease of reading vacuum level
- Each pump is tested before delivery
General Information on Lubricated Vacuum Pumps
(up to 3300 n.l./min.)
A vacuum pump with constant lubrication of the rotor (oil bath). The pumps can be equipped with drip oil system (from 1600 to 3300) or a capillary oiler (from the 250 to the 3300). In the first pumps the lubricant is placed in a 10 litre can and is sent to the pump through the drop regulators measuring out the quantity through an adjusting screw. In the second pump lubricant is placed in a container of 600 ml and is sent to the pump through a capillary oiler auto dosed by the use of strips of copper. They can be supplied bare, complete, on bracket or on vacuum tank. Motor coupling is realized by the use of pulleys and transmission belts, protected by a suitable belt guard for the safety of operators.
Made with the highest quality materials including superior quality belts, bearings and oil seals. The capacity of the pumps is between 250 and 3300 nl / min
