Bridge Rectifier 25A 200V 1 phase

Rectifier 25A 200V

Single phase

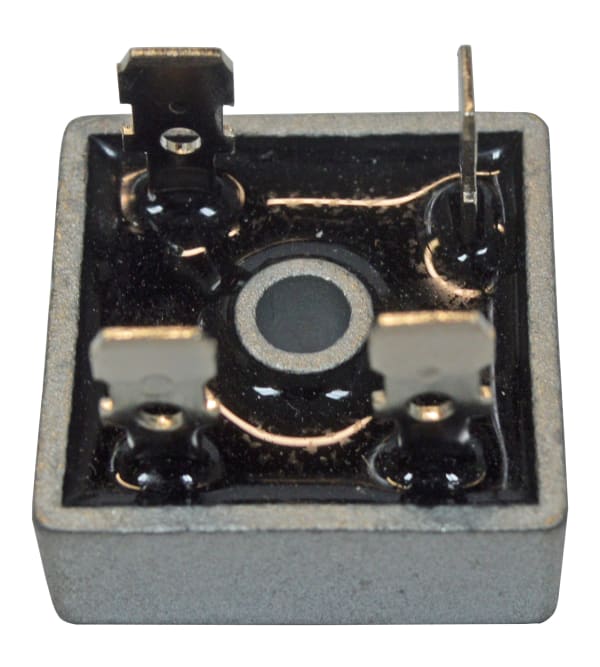

Glass passivated bridge rectifier with solderable 0.25" FAST ON terminals.

The rectifier bridge consists of four silicon junctions connected as a full bridge. It has electrically isolated base -2000volts for maximum heat dissipation.

• Maximum recurrent peak reverse voltage Vrrm is 200V
• Maximum RMS bridge input voltage Vrms is 140V
• Maximum average forward rectified output current I(AV) at Tc = 55°C is 25A
• Peak forward surge current 8.3ms single half sine wave super imposed on rated load Ifsm is 400A
• Operating temperature range from -55°C to +150°C
• Maximum reverse current at rate DC blocking voltage per element at Tj = 25°C is 10?A
• Low forward voltage drop
